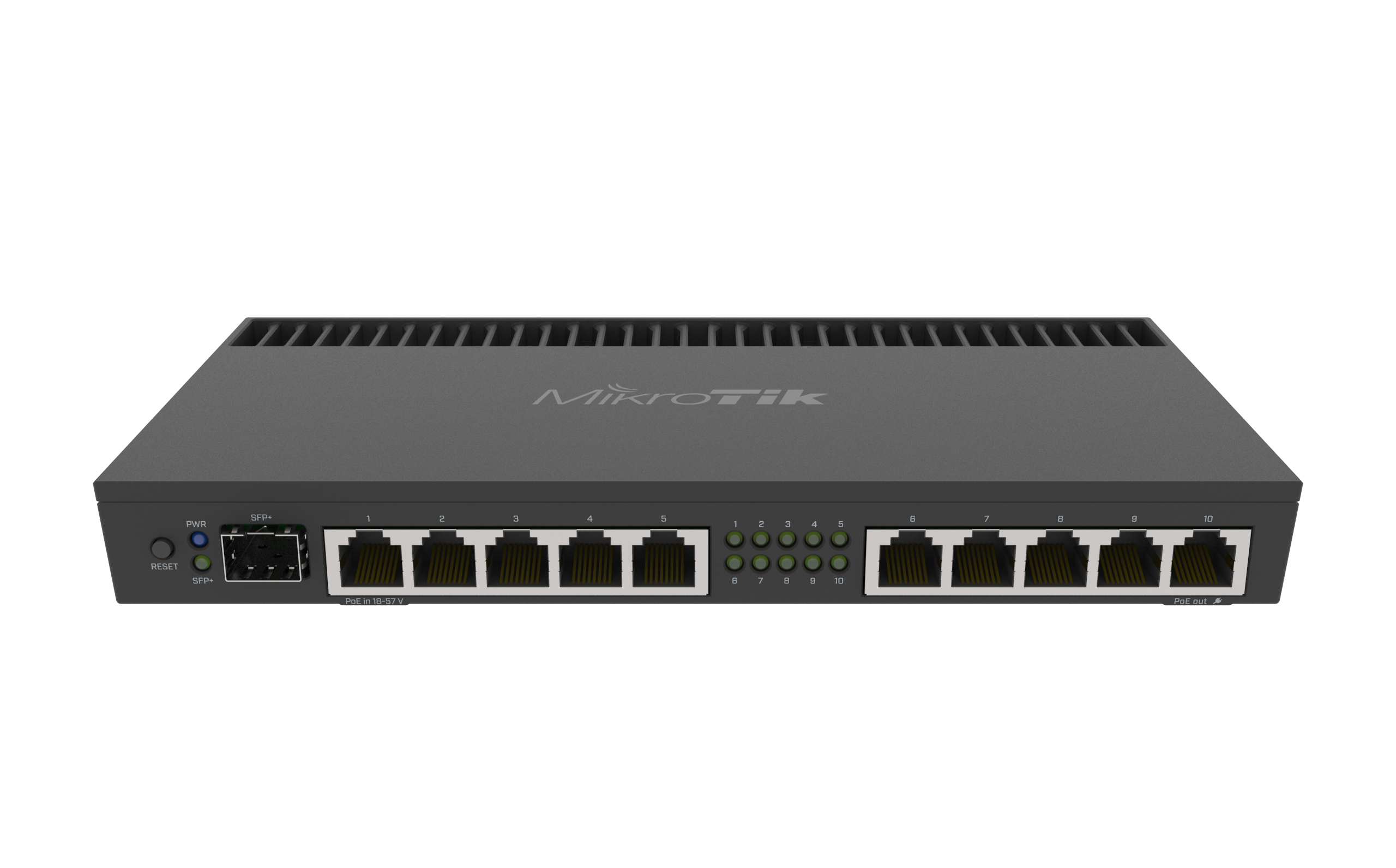

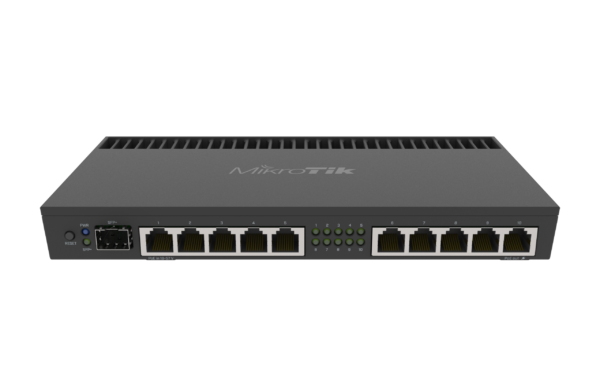

RB4011iGS+RM

RB4011 series – amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

Specifications

Details
Product code	RB4011iGS+RM
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	auto (533 – 1900) MHz
Switch chip model	RTL8367SB
Dimensions	228 x 120 x 30 mm
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	512 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	33 W
Max power consumption without attachments	18 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	18-57 V

PoE-out

Details
PoE-out ports	Ether10
PoE out	Passive PoE up to 57V
Max out per port output (input 18-30 V)	600 mA
Max out per port output (input 30-57 V)	420 mA
Max total out (A)	600 mA

Ethernet

Details
10/100/1000 Ethernet ports	10

Fiber

Details
SFP+ ports	1

Peripherals

Details
Serial console port	RJ45

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Included parts

•

  24V 1.5A power adapter

•

  4011 ears

•

  K-60 kit
