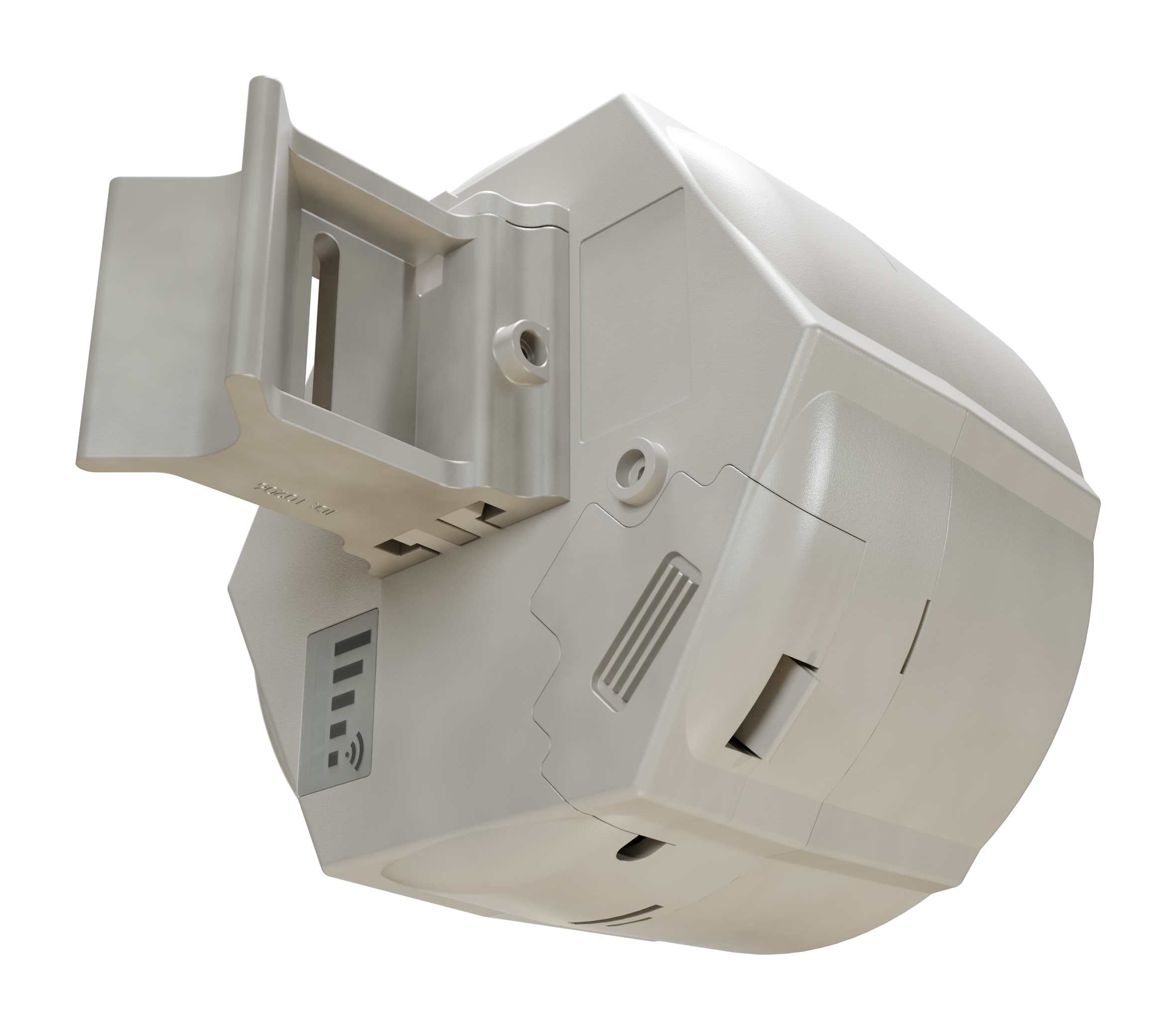

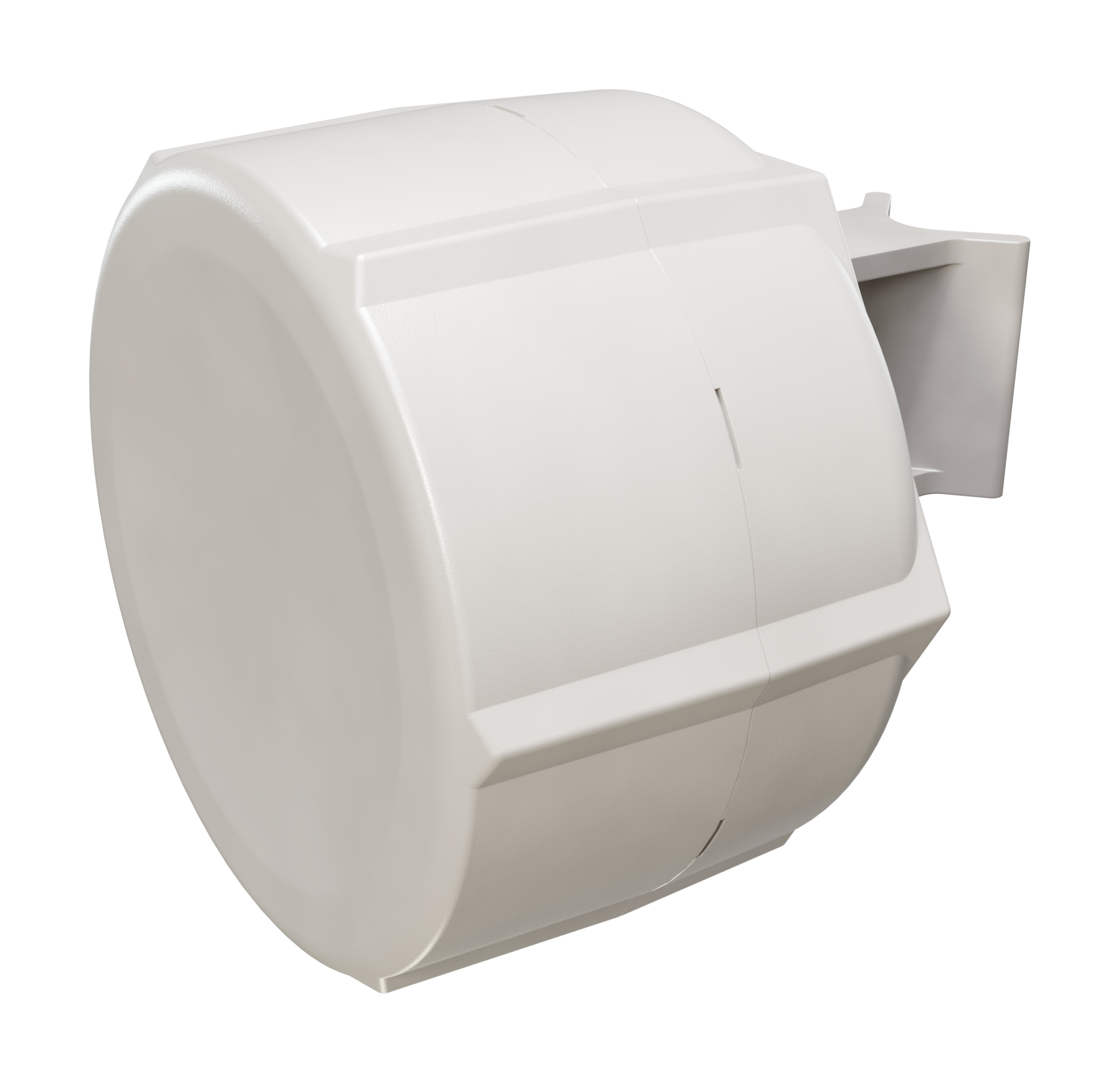

The SXT LTE7 kit is a rugged outdoor LTE access point designed for remote and hard-to-reach locations that remain within cellular network coverage. It keeps the same trusted SXT enclosure that has proven itself in thousands of deployments worldwide – but now features a faster LTE Category 7 modem, delivering higher speeds, better stability, and improved performance in crowded or rural LTE networks.
Mount it outside, point it at the nearest tower, and always stay connected!
SXT has always been about reliable connectivity with minimal visual impact:
• Weatherproof/Snow-resistant
• Unobtrusive, durable, and discreet
• Designed to attract less unwanted attention
The SXT LTE7 kit keeps everything that made the platform popular – and upgrades what matters most: mobile performance. With LTE Category 7, you get faster uploads, better responsiveness, and stronger connections without changing your installation or setup.
We’ve included two Micro-SIM slots for backup. It never hurts to have extra options when itcomes to mobile network coverage. Also, the Category 7 LTE modem enables carrier aggregation, allowing SXT to use multiple LTE bands simultaneously. That’s a huge advantage when there area lot of mobile users in the area. It offers better responsiveness in a crowded environment. And higher efficiency in weaker-signal situations in the countryside. Win-win! We have seen Internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.
The unit is equipped with two Ethernet ports and PoE functionality: PoE-in on Ether1, PoE-out on Ether2. That means SXT can power other devices or be powered by other devices, making your cable management so much easier!
The unit ships with a 24 V power supply but supports a wide range of 12-57 V and is 802.3af/at-compliant.
Download Brochure
Specification
System Specifications
- Product code: SXTR&R11e-LTE7
- Architecture: MIPSBE
- CPU: QCA9531
- CPU core count: 1
- CPU nominal frequency: 650 MHz
- Switch chip model: QCA9531
- RouterOS license: 3
- Operating System: RouterOS v7
- Size of RAM: 64 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 200’000 hours at 25C
- Tested ambient temperature: -40°C to 60°C
Powering
- Number of DC inputs: 1 (PoE-IN)
- Max power consumption: 24 W
- Max power consumption without attachments: 7 W
- PoE in: 802.3af/at
- Cooling type: Passive
- PoE in input Voltage: 12-57 V
PoE-out
- PoE-out portsEther: 2
- PoE out: Passive PoE up to 57V
- Low voltage PoE-Out current limit: 600 mA
- High voltage PoE-Out current limit: 400 mA
- Max total out (A): 600 mA
Mobile
- 3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands:
- 1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
8 (900 MHz)
- 1 (2100 MHz)
- LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL: 2×2
- MIMO UL: 1×1
- LTE FDD bands:
- 1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
- 1 (2100 MHz)
- LTE TDD bands:
- 38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
- 38 (2600 MHz)
- TAC: 35312597
Ethernet
- 10/100 Ethernet ports: 2
Peripherals
- Number of SIM slots: 2 Modem (Micro SIM)
- MiniPCI-e slots: 1
Other
- Mode button: Yes
Certification & Approvals
- Certification: CE, EAC, ROHS
- IP: IP54
Included parts
Ethernet test results
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
|---|---|---|---|---|---|---|---|
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 297.6 | 152.4 |
| Bridging | 25 bridge filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 80.4 | 41.2 |
| Routing | none (fast path) | 16.3 | 197.9 | 47.0 | 192.5 | 233.1 | 119.3 |
| Routing | 25 simple queues | 16.3 | 197.9 | 47.0 | 192.5 | 131.4 | 67.3 |
| Routing | 25 ip filter rules | 16.3 | 197.9 | 47.0 | 192.5 | 49.1 | 25.1 |
Test Notes:
- All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544).
- Max throughput is determined with 30+ second attempts with 0.1% packet loss tolerance in 64, 512, 1518 byte packet sizes.
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration; different configurations will likely result in lower results.
