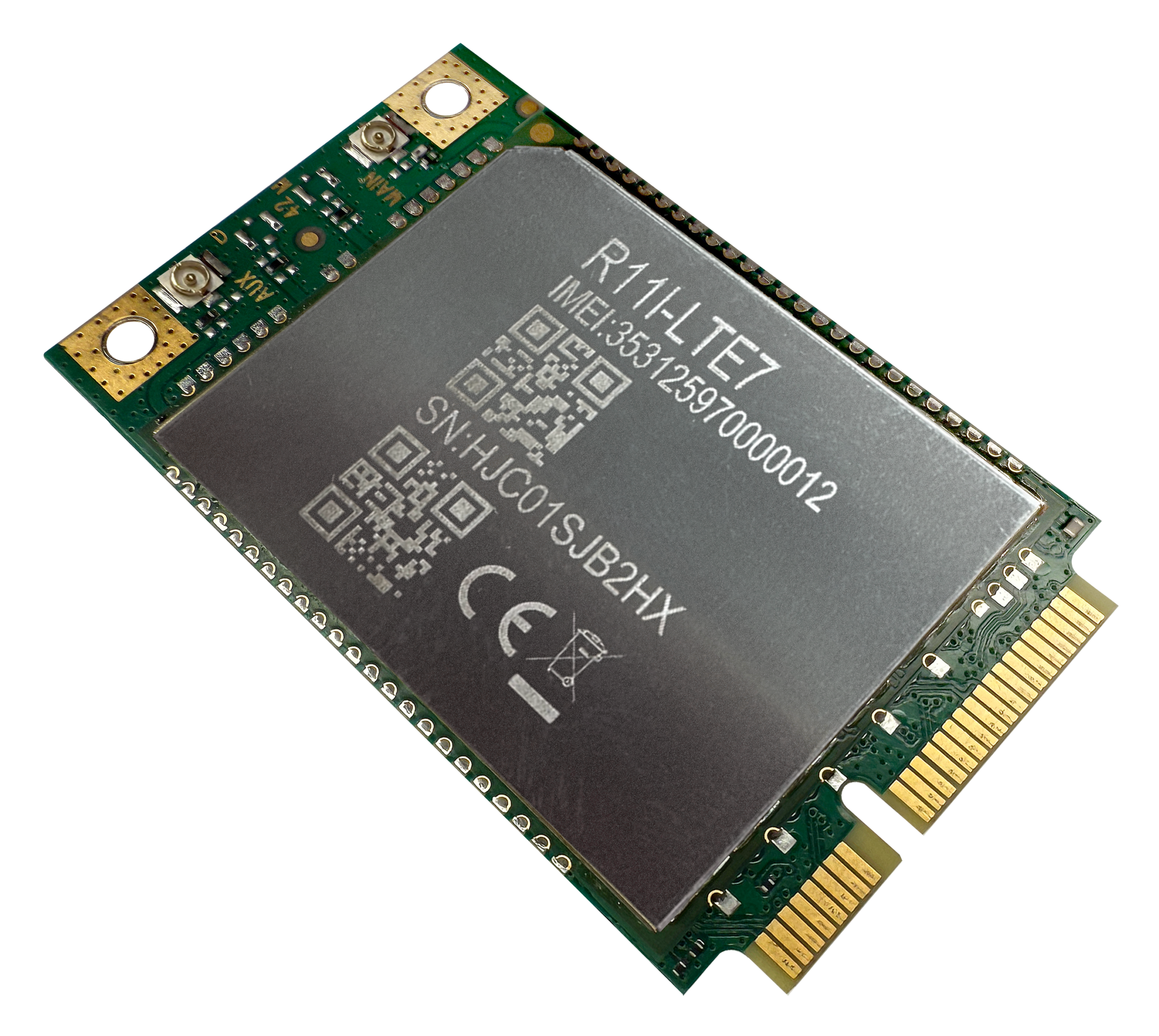

The next-generation miniPCIe LTE CAT7 modem for your RouterBOARDs. Drop-in replacement for FG621-EA – now offering 300 Mbps down / 100 Mbps up, with added Band 32 & Band 28 support.
Perfect for LtAP, RBM33G, or any system with miniPCIe or USB (if you’re using an adapter). Compared to the previous FG621 version, this miniPCIe unit has a smaller form factor, so it should fit better inside more devices. Upgrade your mobile connectivity without changing the whole setup!
Specification
General
- Product code: R11e-LTE7
- MTBF: Approximately 100’000 hours at 25C
- Tested ambient temperature: -10°C to 55°C
Powering
- Max power consumption: 5 W
Mobile
- 3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands:
1 (2100MHz)
5 (850MHz)
8 (900MHz)
3 (1800 MHz)
- LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL: 2×2
- MIMO UL: 1×1
- LTE FDD bands:
1 (2100MHz)
3 (1800MHz)
5 (850MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
28 (700MHz)
32 (1500 MHz)
- LTE TDD bands:
38 (2600MHz)
40 (2300MHz)
41 (2500MHz)
- TAC: 35312597
